Silk T259000+ high illumination/adjustable color temperature transmission light box
Product Overviews
T259000+ high illumination/adjustable color temperature transmission light box is a special camera test light box. This product adopts LED light source with high power, high illumination, no flicker, long life and stable color temperature to provide professional lighting environment for camera lens evaluation system.

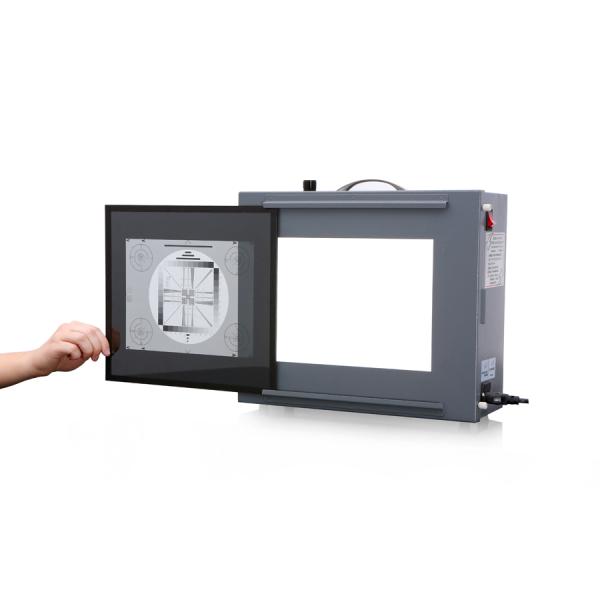

T259000+ high illumination/adjustable color temperature transmission light box (Figure 1) is mainly composed of: light box body, handle, test card slot, transmission panel, light source switch, test card fixing screw, power socket, power switch, light source control box (Figure 3) and other components.
Product features:
1. Transmission Uniformity >93%.
2. Adjustable color temperature, range: 2300K-8000K.
3. Adjustable illumination, dimming range: 0-160,000 Lux.
4. Frequency adjustable, range: 1-15KHz
5. It can be controlled by the PC software when connected with the computer wirelessly through R485 to USB cable or WiFi.
6. More than 10,000 hours of life.
Product specification:
1. The external size of the light box (as shown in Figure 2) : (L*W*H)410mmx145mmx330mm.
2. Light box transmission surface size: (L*H)290mmx220mm.
3. Test card slot size: (L*W*H)360mmx8mmx285mm.
4. Size of light source control box (as shown in Figure 3) : (L*W*H)303mmx302mmx101mm.
5. Use environment: 0-28℃, relative humidity below 85% (non-condensation).
6. Input voltage: AC210-240V 50/60HZ maximum power consumption of 250W.
7. Net weight: 10.8kg.
Warranty
Camera Image Quality Test Standard Color Viewer transmission light box T25900+ have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
